Answer: Logic Lights #34

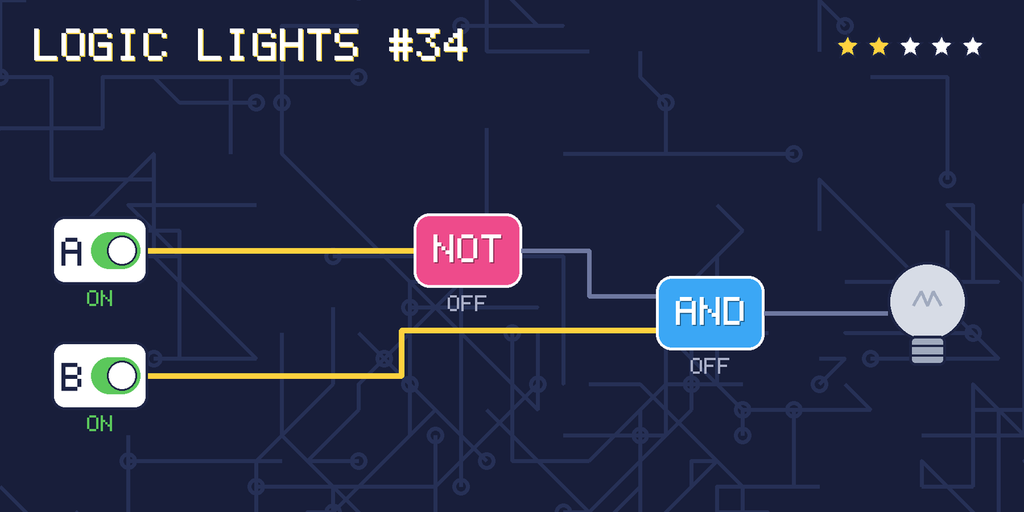

The lamp is OFF. It stays dark!

Yellow wires carry power. Grey wires don’t.

Gate by gate

NOT A → NOT ON = OFF
NOT A AND B → OFF AND ON = OFF

The same circuit in Python

Python has the same three gates built in: and, or and not. ON is True and OFF is False.

A = True
B = True

lamp = not A and B
print("Is the lamp on?", lamp)

When you run it, it prints:

Is the lamp on? False

Try it: change one of the switches from True to False (or the other way round) and run the code again. Can you find a switch that changes the lamp?
