Answer: Logic Lights #42

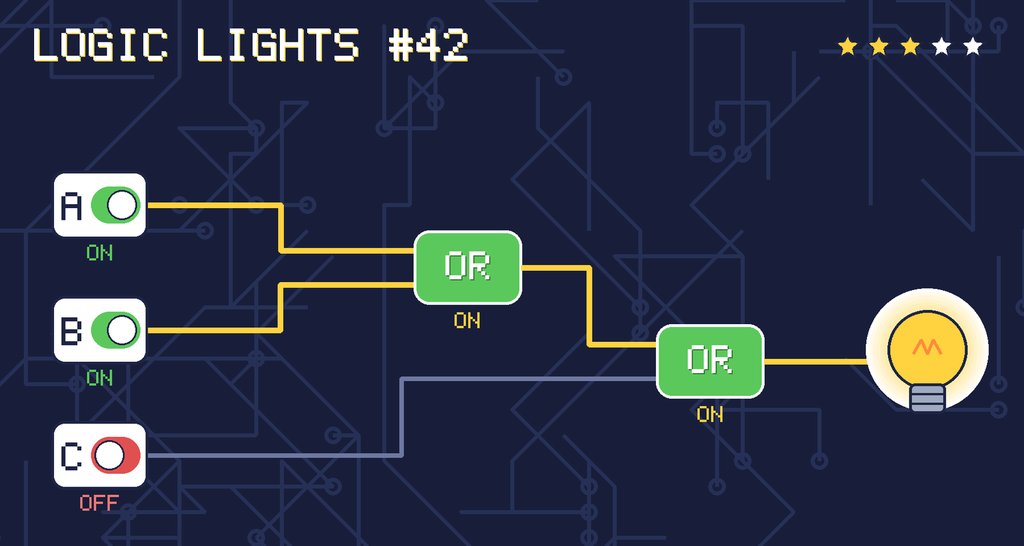

The lamp is ON. It lights up!

Yellow wires carry power. Grey wires don’t.

Gate by gate

A OR B → ON OR ON = ON
(A OR B) OR C → ON OR OFF = ON

The same circuit in Python

Python has the same three gates built in: and, or and not. ON is True and OFF is False.

A = True
B = True
C = False

lamp = (A or B) or C
print("Is the lamp on?", lamp)

When you run it, it prints:

Is the lamp on? True

Try it: change one of the switches from True to False (or the other way round) and run the code again. Can you find a switch that changes the lamp?
